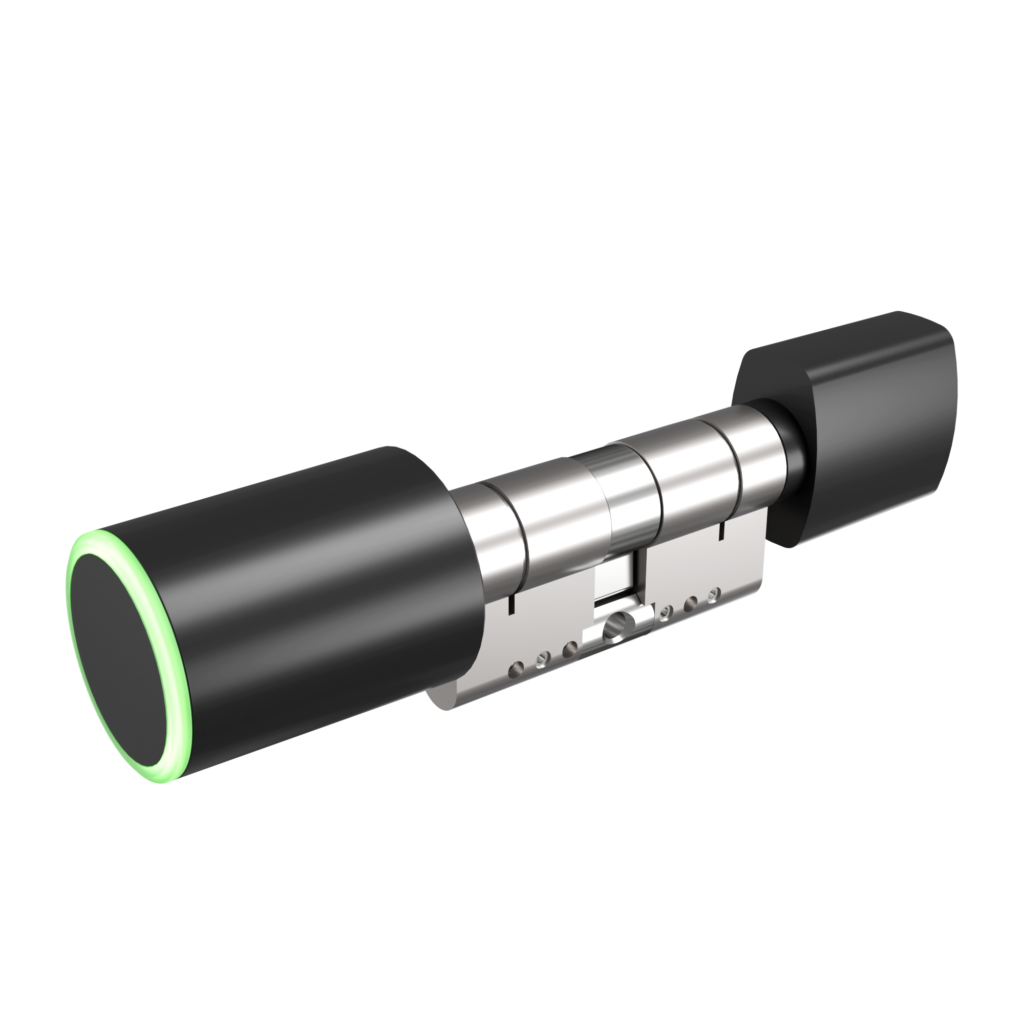

| Product Type | Modular smart lock cylinder |
| Cylinder Length | Modular adjustable-length design; confirm the required A/B dimensions before ordering |

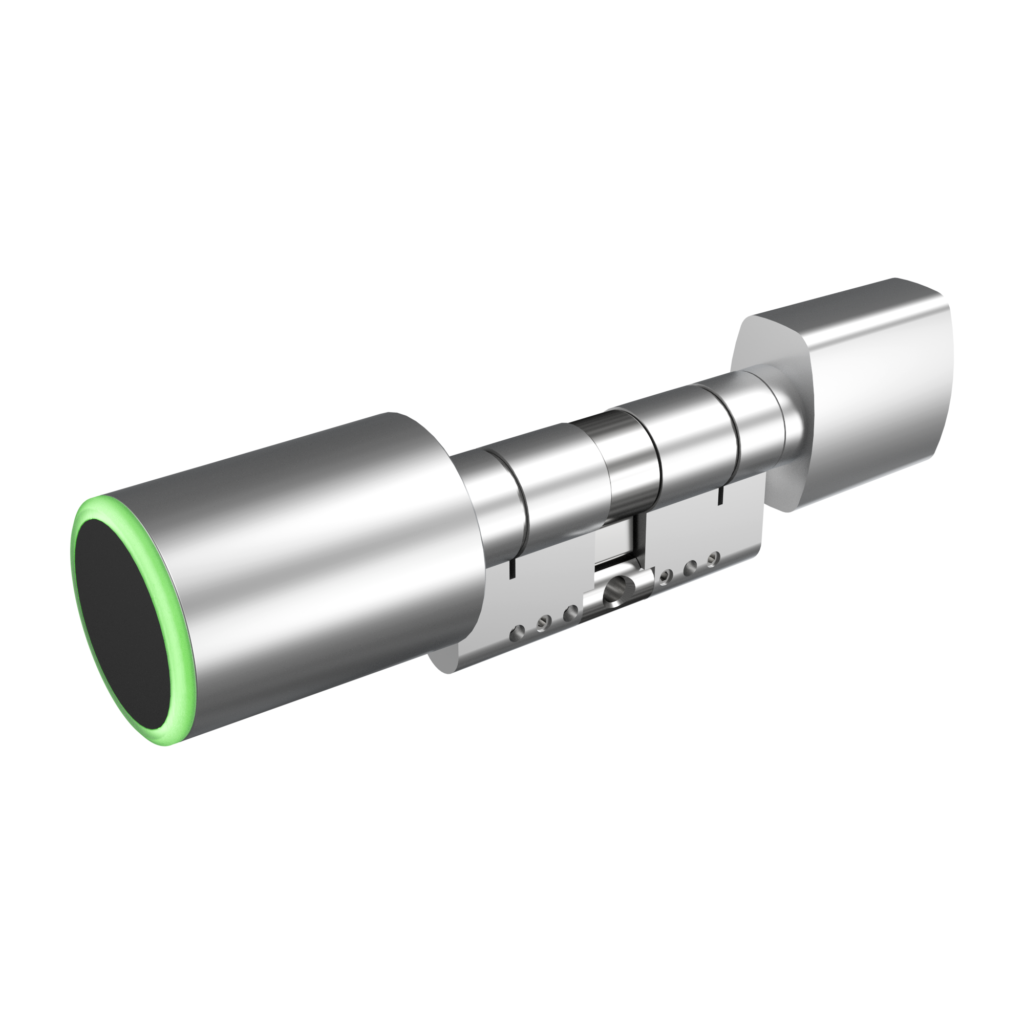

| Available Finishes | Satin Stainless Steel; Black |
| App Platform | Tuya or TTLock, depending on the selected version |

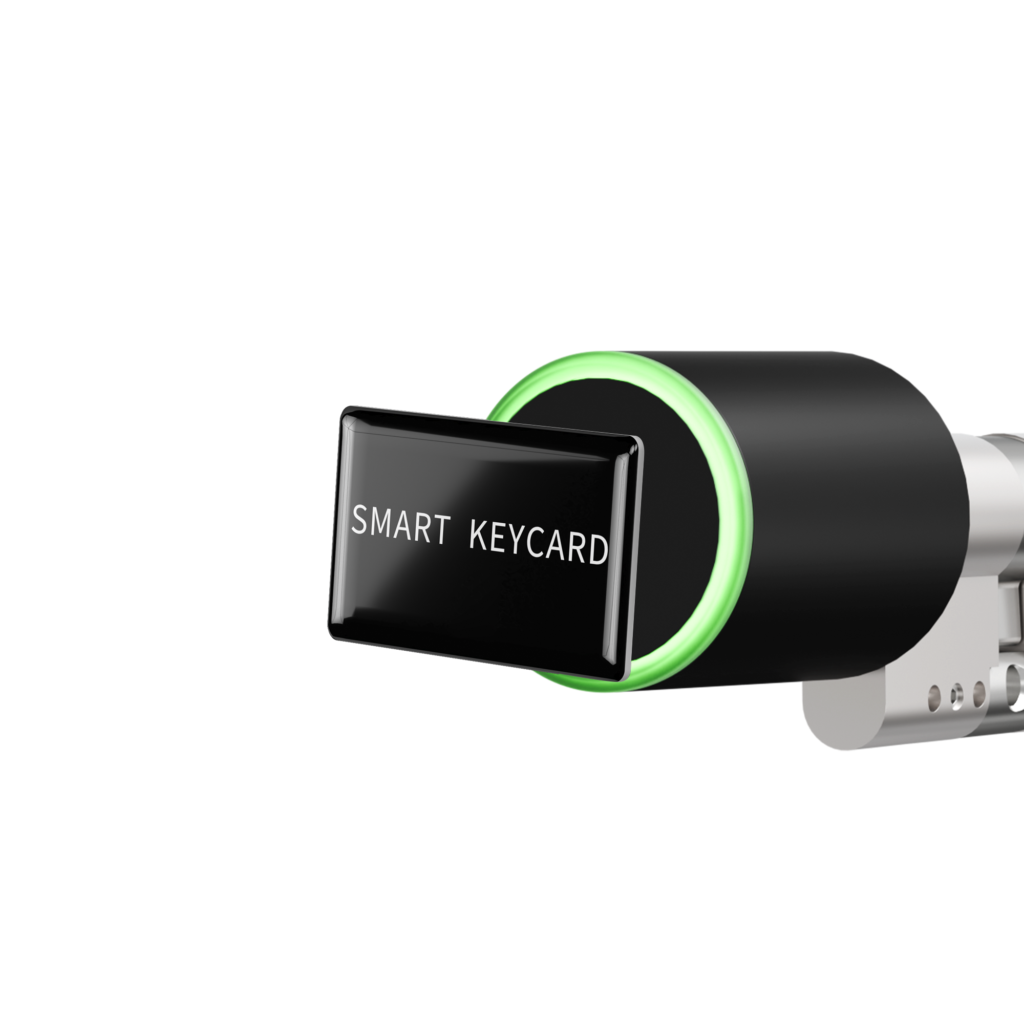

| Local Access | Bluetooth (BLE), RFID card and NFC; availability depends on the selected solution |
| Standard Card Type | MIFARE Classic® S50 |
| RFID Frequency | 13.56 MHz |
| RFID Protocol | ISO 14443A |
| Optional Card Type | MIFARE DESFire®; hardware and platform compatibility to be confirmed |
| Remote Access | App-based remote unlocking via a compatible Wi-Fi gateway (optional) |
| Optional Keypad | Fingerprint and PIN access via a compatible external keypad; not built into the cylinder |
| Power Supply | 1 × 3 V CR14250 battery |
| Battery Life | Approx. 1 year (catalogue rating); actual life varies with usage and operating conditions |
| Ingress Protection | IP68 (catalogue rating) |
| Supporting Accessories | Card encoder and disassembly tools; accessory availability depends on configuration |
| Applications | Residential, commercial, office, hotel and apartment access management |
| OEM / ODM | Customization available |
| Software Integration | App SDK and API support available; integration scope depends on the selected solution |
